If you own a disc brake gravel or cyclocross bike from before 2020, you’ve probably encountered this frustrating situation: your bike has a perfectly good 15mm thru axle fork, but newer wheelsets only support a 12mm front thru axle. This leaves you with three expensive options: buy a new carbon fork (200$+), stick with limited 15mm wheelset choices, or find a clever workaround.
After extensive research, I discovered that a 15mm to 12mm fork conversion kit offers the perfect solution. This detailed review covers everything you need to know about converting your fork, based on over 10,000 kilometers of testing on my ROSE Xeon Cross CDX from 2017.
🚀 TL;DR – Fork Conversion Review Summary:
✅ Why Convert: Access modern 12mm wheelsets like Elitewheels Edge/Drive 50D on 15mm forks
✅ Cost: 10$ for conversion kit + tools (~20$ total)
✅ Compatibility: Works with most 15mm road/gravel/cyclocross forks
✅ Long-term Results: 10,000+ km tested – excellent reliability and performance
🎯 Best for: Cyclists wanting modern wheelset compatibility without expensive fork replacement
Why I Converted My Xeon Cross CDX Fork to 12mm Thru Axle

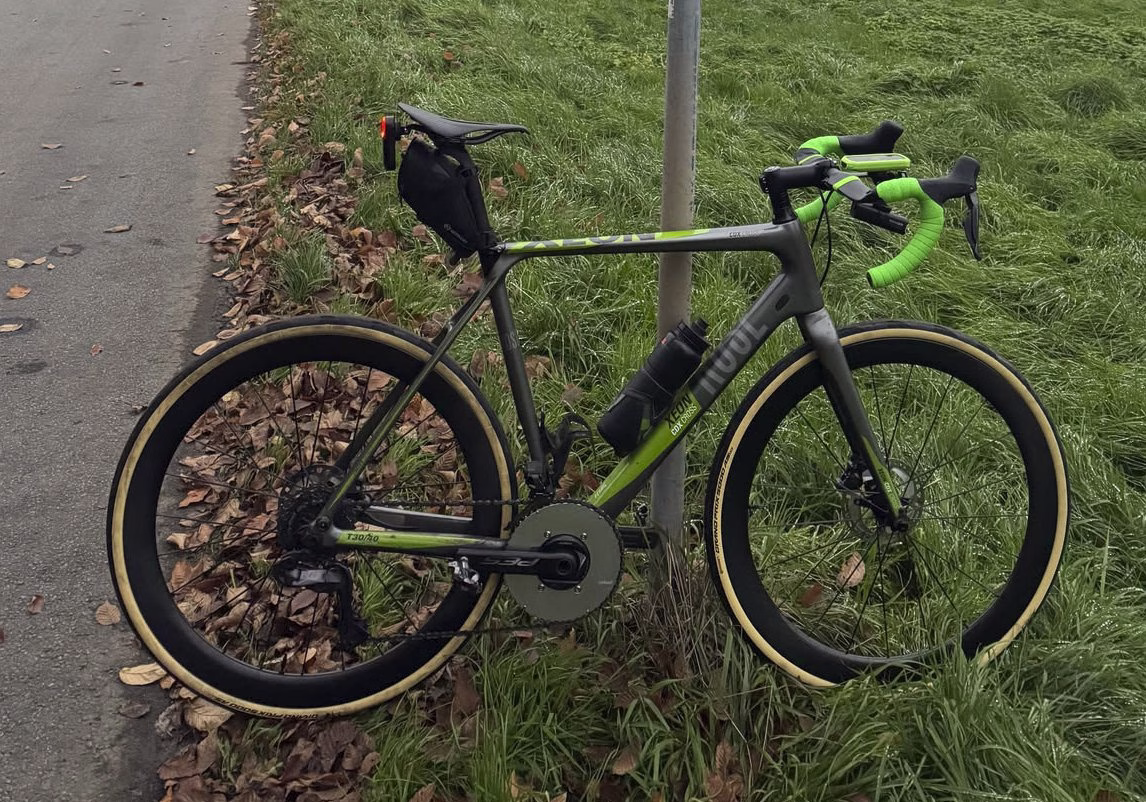

My 2017 Xeon Cross CDX (identical frame to the ROSE Backroad 2019) came with the older 15mm x 100mm thru axle standard. While my Zipp 303S wheels work perfectly with 15mm thru axles (after swapping end caps), I wanted access to modern more lightweight carbon wheelsets like the Elitewheels Edge and Drive 50D that only come in 12mm x 100mm format.
Rather than replacing the entire fork (costing €200+), a 15mm to 12mm fork conversion opened up access to the latest wheelset technology at a fraction of the cost.
Fork Conversion Kit Specifications and Compatibility
| Specification | Details |
|---|---|
| Original Standard | 15mm x 100mm thru axle |
| Target Standard | 12mm x 100mm thru axle |
| Compatible Forks | Most 15mm road/gravel/cyclocross forks (see compatibility list below) |
| Conversion Kit Cost | $10 |
| Installation Type | DIY-friendly with basic tools |
| Required Tools | 2.3mm pin spanner, 5mm hex key (torque wrench) |
| Weight Impact | Minimal (depends on your old TA) |
| Modification Type | No machining – precision kit components, fully reversible |
Should You Convert Your 15mm Fork to 12mm? Buying Guide
✅ 15mm to 12mm Fork Conversion Perfect for:
- Owners of compatible 15mm forks wanting modern 12mm wheelset access
- DIY enthusiasts with basic mechanical skills and tools
- Budget-conscious cyclists avoiding expensive fork replacement (200$+)
- Gravel and cyclocross riders upgrading to lightweight carbon wheelsets
- Cyclists wanting reversible modifications without permanent fork changes
❌ Consider alternatives if:
- Your fork model isn’t on the compatibility list
- You’re satisfied with current 15mm wheelset options
- Budget allows for complete new 12mm fork purchase
- You prefer professional installation for all bike modifications
- Your fork shows signs of wear or damage requiring replacement
Essential Tools and Components
Required Tools:
- 2.3mm pin spanner for insert installation
- Grease for threads
- Torque wrench (9-13.5 Nm range) for tightening
- 5mm hex key for axle installation (optional)
Conversion Kit Contents:
- Thread adapter: M15x1.5mm external thread (15mm long), M12x1.5mm internal thread
- Thru hole insert: 15mm OD x 12mm ID, 10mm long
- 12mm thru axle: 130mm long, M12x1.5mm threads
- 2mm spacer: Optional for fine-tuning length
15mm to 12mm Fork Conversion: Compatible Bike Models
This thru axle conversion kit works with a wide range of 15mm front forks from popular gravel, road, and cyclocross bikes:
Major Compatible Fork Brands and Models:
- Niner: BSO RLT RDO (non-MTB models with 125mm axle spacing)
- GT: Grade series gravel bikes
- Jamis: All 15mm road and gravel models
- Kona: Roadhouse, Private Jake, and Jake the Snake
- Norco: Search and Threshold adventure bikes
- Felt: All 15mm road and gravel fork models
- Rose: Backroad and Xeon Cross CDX (my test bike)
- Whisky: #9 fork (popular aftermarket option)
Additional Compatible Gravel and Road Bike Models:
- Raleigh: Roker, Tamland, RXM, RXC Pro
- Otso: Waheela (w/Lithic Hiili fork)
- All City: Cosmic Stallion (w/ Whisky #9 fork)
- Lynskey: PRO CX and PRO Road forks (not PRO GR)
- Litespeed: T5 Gravel
- No. 22: Broken Arrow and Drifter
- Foundry: Overland (w/ Whisky #9 fork)
- Genesis: Datum
- Dolan: DR1
- Carbonda: CFR505
- Bombtrack: Hook 3
- PlanetX/On One: Bish Bash Bosh
- Saracen: Avro
- Viner: Super Prestige
- Bottecchia: T2 Doppia Corsa
- Kindhuman: Kudu
- Pride: ROCX Tour LT
- Opus: Allegro
🔧 Compatibility Note: This kit is designed specifically for 15x100mm front forks. Always verify your fork’s axle standard before ordering.
DIY Fork Conversion Installation Guide: Step-by-Step Process
Step 1: Fork Assessment and Preparation
Before starting, verify compatibility and prepare your workspace:
- Check fork model against compatibility list above
- Clean dropout area thoroughly
- Remove existing 15mm thru axle and any debris
- Inspect threads in fork dropouts for damage
🔧 Pro Tip: The conversion uses threaded adapters that screw into your existing 15mm threads – no permanent modification required!
Step 2: Thread Adapter Installation
- Apply grease or low-strength threadlocker to thread adapter (M15x1.5mm external, M12x1.5mm internal)
- Install thread adapter into fork using Park Tool SPA-2 or equivalent 2.3mm pin spanner
- Position flange on OUTSIDE of fork – this is critical for proper fit
- Tighten securely but don’t over-torque the aluminum threads
Step 3: Thru Hole Insert Installation
- Apply grease to o-ring of thru hole insert (15mm OD x 12mm ID, 10mm long)
- Install from outside using combined pushing and twisting motion
- Do NOT use thru axle to drive insert into fork – hand install only
- Ensure flush fit with fork dropout face
Step 4: Axle Installation and Testing
- Apply grease to axle threads (12mm x 130mm, M12x1.5mm threads)
- Install 12mm thru axle using 5mm hex key
- Torque to 9-13.5 Nm following manufacturer specifications
- Test with 2mm spacer if fine-tuning length is needed
Step 5: Quality Control Testing
- Wheel mounting test: Multiple installation/removal cycles
- Alignment check: Measure wheel centering accuracy
- Torque verification: Ensure all components meet specifications
- Safety inspection: Check for any stress points or irregularities
🔋 Installation Success: The beauty of this system is that it’s completely reversible – you’re not permanently modifying your fork, just adding precision adapters.
10,000+ km Long-Term Test Results: Real-World Performance
After extensive testing on my Xeon Cross CDX across various conditions – from smooth tarmac to rough gravel roads – here are the comprehensive performance results of this 15mm to 12mm thru axle conversion:
Wheelset Compatibility Testing Results
| Wheelset | Original (15mm) | After Conversion (12mm) | Notes |
|---|---|---|---|
| Zipp 303S | ✅ Perfect (with end caps) | ✅ Perfect | No issues |
| Elitewheels Edge | ❌ Incompatible | ✅ Perfect fit | Main goal achieved |
| Drive 50D | ❌ Incompatible | ✅ Perfect fit | Smooth operation |
Long-Term Reliability After 10,000+ km Testing
After more than 10,000 kilometers of testing across various terrains and weather conditions:
- No loosening issues with properly torqued components
- Perfect wheel alignment maintained
- No wear signs on conversion hardware
- Smooth axle operation in all conditions
15mm to 12mm Fork Conversion: Cost Analysis and Value
| Option | Cost | Pros | Cons |
|---|---|---|---|
| 15mm→12mm Conversion | €20-35 total | Keep familiar fork, DIY-friendly, reversible | Limited to compatible forks |
| New 12mm Fork | €100+ | Fresh start, warranty | Higher cost, setup complexity |
| Keep 15mm + Adapter Wheels | €0-20 | No modification | Limited wheelset options |
Fork Conversion FAQ: Common Questions Answered
❓ Is the conversion reversible?
Yes! Unlike machining solutions, this uses threaded adapters that can be removed to return to original 15mm configuration.
❓ What’s the difference between conversion kits?
Most kits include similar components (thread adapter, thru hole insert, axle, spacer). This specific kit has extensive compatibility testing and clear installation instructions.
❓ Can I do this conversion myself?
Yes! With basic tools (Park Tool SPA-2, 5mm hex key) and following the instructions, this is a DIY-friendly installation.
❓ How do I know if my fork is compatible?
Check the extensive compatibility list above. If your fork model is listed, the conversion should work perfectly.
❓ Will this affect my bike’s warranty?
Since this doesn’t permanently modify the fork, warranty impact is minimal compared to machining solutions.
❓ How long does installation take?
Expect 30-45 minutes for a careful installation with proper torque specifications.
Final Review: Is 15mm to 12mm Fork Conversion Worth It in 2025?
| Pros | Cons |
|---|---|
| ✅ Access to modern wheelsets | ❌ Limited to compatible fork models |
| ✅ DIY-friendly installation | ❌ Requires specific tools |
| ✅ Completely reversible | ❌ Additional components to maintain |
| ✅ No permanent fork modification | ❌ Slight weight increase |
| ✅ Budget-friendly solution | ❌ Not suitable for all 15mm forks |
After 10,000+ kilometers of real-world testing, this 15mm to 12mm fork conversion exceeded expectations and successfully opened access to modern carbon wheelset technology. For cyclists with quality frames but outdated 15mm axle standards, this conversion represents an excellent way to modernize without expensive fork replacement.
Key success factors:
- Verify fork compatibility before ordering
- Follow torque specifications exactly (9-13.5 Nm for axle)
- Use proper tools (2.3mm pin spanner for insert installation)
- Apply Grease to all threaded connections
🎯 Bottom Line: This 15mm to 12mm fork conversion kit is a game-changer for cyclists with compatible forks. The DIY-friendly installation, reversible design, and proven long-term reliability make it a low-risk, high-reward upgrade that opens access to the latest 12mm wheelset technology at minimal cost.
